POD evicted and unable to be launched again!


When we did the regular check on our official EOS node on the main-net, we found that one full node was evicted and can’t be launched again. Obviously, the node was shut down and not working.


Status of the Pod

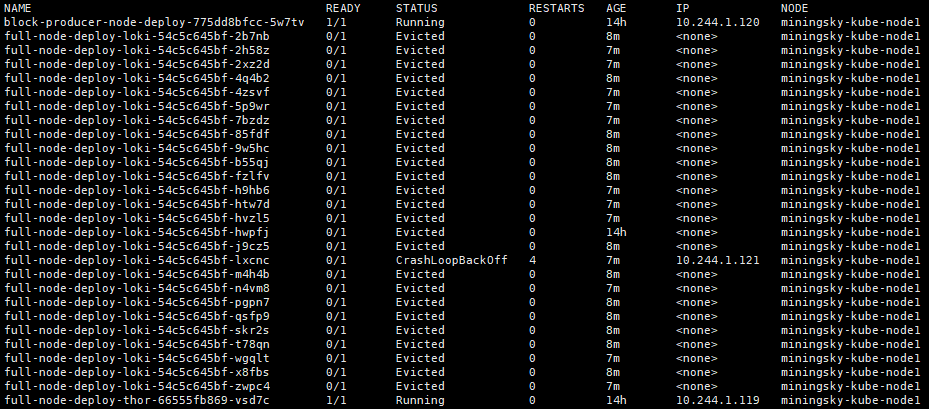

kubectl get po -owide

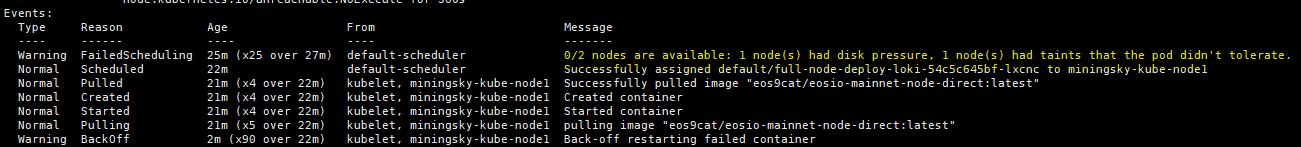

kubectl describe pod <pod-name>


We found one funny factor that –

0/2 nodes are available: 1 node(s) had disk pressure, 1 node(s) had taints that the pod didn’t tolerate.

Note: EOS9CAT currently has 1 x master node (pod not tolerated) + 1 x worker node.


The kubelet needs to preserve node stability when available compute resources are low. This is especially important when dealing with incompressible compute resources, such as memory or disk space. If such resources are exhausted, nodes become unstable.

Running 2 x full nodes + 1 bp node on one server seems that exhausted the disk I/O (SSD already).

In terms of EOS9CAT monitoring, after the EOS main-net was officially launched for more than 1 month, more and more transactions are being made into the blocks.

Currently, the nodes require very high network bandwidth and disk I/O than we expected before the EOS launching day.


  1. Enable the master node to hold the podsReference: Creating a single master cluster with kubeadm – Master Isolationkubectl taint nodes --all node-role.kubernetes.io/master-
  2. Re-configure the Persistent Volume for the master node
    • Change the nfs server address to be same with the master node
        # FIXME: use the right IP
        server: <nfs server ip address>
        path: "path/to/folder"
    • kubectl create -f <pv.yaml>
  3. Transfer the snapshot to the master node
    • stop the running node
    • copy all the blocks/ and state/ to the node’s folder which is located in the master node
  4. Label each nodes and add the nodeSelector into the pod yaml file
    • Reference: Assign Pods to Nodeskubectl label nodes <your-master-name> role=masterkubectl label nodes <your-node1-name> role=node1
    • Add the {.spec.nodeSelector} into the deployment yaml file
          role: master
  5. Deploy the deployment in the Kubernetes


6. Now the I/O chart from each node after the change.

  • master node


  • node1 node



  1. Fully utilize the resource of the bare metal could give us more stabilities.
  2. A good PV (PersistentVolume) design could promote the whole performance of the pod fail-over.
  3. EOS synchronization requires robust network bandwidth and the disk I/O, especially several nodes are sharing the resource of one bare metal server.
