Getting Ready for Smart Contract Development on EOS – Part 1


EOS being a newborn in blockchain space, promises to deliver vertical and horizontal scaling of decentralized applications unmatched by the other Blockchain platform out there. The technology and infrastructure of the EOS blockchain will eventually have the capability of driving millions of transactions per second through a fast DPos – Delegated Proof of Stake – consensus algorithm. At EOS9CAT, we are developing applications with the amazing technology. We feel that it’s absolutely crucial to share our experience and hope to inspire you to build something of your own.

Setting Up

The EOS development ecosystem currently features three main toolsets to interact the blockchain:

  • Nodeos is a daemon that is used to host and run EOS node.
  • Keosd is a light-weight wallet client responsible for protecting keys and signing transactions with them.
  • Cleos is a command line tool to interact with EOS blockchain and serves as a bridging component between Nodeos and Keosd.

Step One: Building EOS

Make sure your system has 8GB of RAM and 20GB of free hardware space.

Install Docker and Docker-compose

Docker is a container management service that runs on top of the os kernel to allow for easy application development and deployment by allowing developers to synthesis a sandbox environment with fine-tuned system environments, variables, and packages.

In order for them to develop with Docker containers, it’s necessary to install the necessary files and programs, please follow this guide: and install docker for your corresponding os.

Build with Docker Compose

Create a file called docker-compose.yaml with the following content:

version: "3.5"

    container_name: nodeosd
    image: eosio/eos-dev:latest
    command: /opt/eosio/bin/ --data-dir /opt/eosio/bin/data-dir -e --access-control-allow-origin=* --contracts-console --http-validate-host=false
    hostname: nodeosd
      - 8888:8888
      - 9876:9876
      - "8888"
      - ./nodeos-data-volume:/opt/eosio/bin/data-dir
      - eosio

    container_name: keosd
    image: eosio/eos-dev:latest
    command: /opt/eosio/bin/keosd --wallet-dir /opt/eosio/bin/data-dir --http-server-address= --http-validate-host=false
    hostname: keosd
      - ./keosd-data-volume:/opt/eosio/bin/data-dir
      - eosio
    name: eosio

Start Nodeos and Keosd

Run command:

docker-compose up -d
  • d flag allows the containers to be run in detached mode (as a daemon in the background)

The above command will essentially spawn two containers base on the eosio-dev docker image with one of each running the Nodeos client responsible for interacting with the blockchain and Keosd for managing the wallet. EOSIO provides a Docker image on docker hub – which is the equivalent of Github for Docker – that is pre-packaged with the necessary toolset needed for developing smart contracts for the EOS blockchain.

Note: EOS also offers an eosio docker image on Docker Hub which is significantly smaller in size in comparison to the dev image. The dev image will be crucial in smart contract development because it contains eosiocpp which is the essential compiler for translating C++ code into web assembly code understandable by EOS blockchain.

run the following command to check if the node is working properly:

sudo docker logs --tail 10 nodeosd

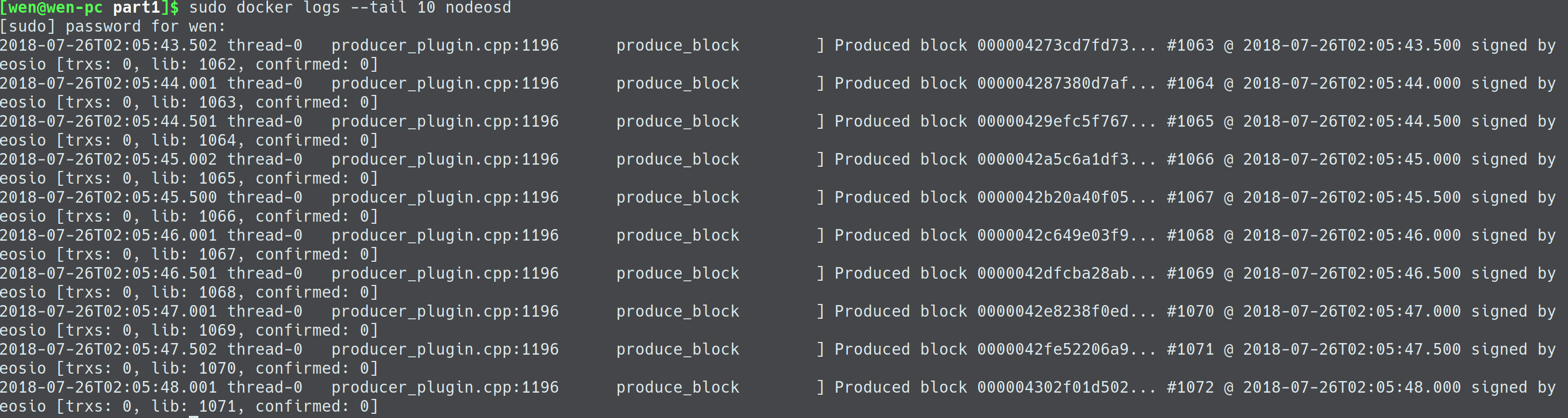

The output should be similar to the following screenshot:

If you would like to stream the logs, you can attach back to the container of nodeosd with the command:

sudo docker container attach nodeos

or simply:

sudo docker logs -f

Finally, chthe this address in the host browser to ensure that the RPC interface and port binding is working as expected:


The browser should return a json object that should be similar to this:


Set alias

Run the following command to set-alias:

alias cleos='docker exec -i keosd /opt/eosio/bin/cleos -u http://nodeosd:8888 --wallet-url http://localhost:8900'

Since the cleos alias is set to execute the process in the keosd container environment, the wallet-url flag is set to localhost of port 8900, and the flag is set to point to the address where nodeos is running, which in this instance is another container.

Verify the alias set correctly.

Step Two: Create Accounts

In order to create accounts, you will need two pairs of keys: owner key pair and an active key pair. Each account has an owner key pair and an active key pair. The active key pair is for signing transactions and owner key pair is responsible for the account owner.

Create Keys:

Run the following command twice to generate two pairs of keys:

cleos create key

You should receive the following output signaling the successful creation of private and public key pair:

$ cleos create key
Private key: 5JGKHd79fsS5QKDemJYqEGwpDeADooVBGFbEcahJmEgRiXFbBBQ
Public key: EOS7XnZdBp4V2yRgSUhCMXRhVGfZQcHpa828xpTiyMX4BLUQdu28B

Create Wallet:

A Wallet is a place where you store all of your key pairs which may or may not associate with the permission of one or more accounts.

cleos wallet create

A default wallet will be generated after passing the command, you can also specify the name of a generated wallet by passing a the n flag along with the name as an argument.

The wallet can be unlocked and locked by invoking the following commands:

cleos wallet lock
cleos wallet unlock --password ${passphrase}

By default, a wallet will be immediately unlocked after its creation, and a locked wallet will require the passphrase generated during wallet creation to unlock.

The list the currently available wallet, run the command:

cleos wallet list

An array of wallet name like the above will be returned:

  "default *"

The asterisk beside the wallet name indicates that the wallet is currently unlocked and available.

Import Key Pairs into Wallet:

Now that we a wallet and couple of key pairs generated, it’s time to import the keys into the wallet. Run the following command twice and each time with a private key generated before.

cleos wallet import ${private key}

Import Authorizing Account Key:

Since the actions performed on the blockchain must be signed using the keys associated the authorizing account(producer), we can mimic this interaction by creating a separate wallet that will import the producer’s private key found within the config.ini file inside the container.

cleos wallet create -n producer

By default this should be the private key associated with the authorizing account eosio:

cleos wallet import -n producer 5KQwrPbwdL6PhXujxW37FSSQZ1JiwsST4cqQzDeyXtP79zkvFD3

Run the following command to ensure that all the keys are properly imported:

cleos wallet keys

Generate Account:

This is where keys, wallet, and account all tie together. In EOS blockchain, your token, smart contract all live in your account. Each account has an owner key pair and an active key pair. The active key pair is for signing for the transaction and own key pair is for the account owner. Run the following command to create an account:

cleos create account eosio ${accountName} ${owner public key} ${active public key}

In the above command line, the first key will become the account owner key and the second key will become the active key.

Note: although that the owner public key and active public key can be the same, it’s highly recommended to use two different keys in a production environment for security purpose.

Since the eosio::history_api_plugin is installed, we can run the following command to query all the accounts that are associated with a public key:

Once you have the account ready, you are all set for the development environment.

$ cleos get accounts ${public key}

Step Three: Loading the Bios Contract

Now that the wallet and accounts are properly set up, it’s time to deploy the system contract. For the purpose of the tutorial, eosio.bios will be used, the contract can be found within the folder of /contracts/ inside the container. In the public EOS blockchain, system contract is used manage the staking and unstacking of tokens and reserve bandwidth for CPU and network activity, and memory for contracts. Again, we’ll be using the eosio producer account credentials to sign off the contract deployment.

Run command:

cleos set contract eosio /contracts/eosio.bios -p eosio@active

Note: Please be aware that the contract location argument refers to the path within the keosd container, and not the path of the host machine

The similar output of the following will denote the successful deployment of the contract:

Reading WAST/WASM from /contracts/eosio.bios/eosio.bios.wasm...
Using already assembled WASM...
Publishing contract...
executed transaction: 7dde788c5c75a08ee0e1ebbd7865ad43861b77386372f028db4ab99f930004eb  3728 bytes  7811 us
#         eosio <= eosio::setcode               {"account":"eosio","vmtype":0,"vmversion":0,"code":"0061736d0100000001621260037f7e7f0060057f7e7e7e7e...
#         eosio <= eosio::setabi                {"account":"eosio","abi":"0e656f73696f3a3a6162692f312e30050c6163636f756e745f6e616d65046e616d650f7065...

Note: the arguments passed with the alias will refer to the environment variable and path that’s associated with container context instead of the host.

Final Remark

If the EOS blockchain needs to be shut down, you’ll do it gracefully by issuing the following command.

docker-compose down

In scenarios in which the EOS blockchain, more specifically nodeosd the daemon that’s responsible for running the node, you might get a database is a dirty flag which prohibits the nodeosd from resuming after a shutdown. You’ll have to run the following command to run nodeos with the added flags of –replay-blockchain –hard-replay-blockchain

docker-compose run --name nodeosd -p 8888:8888 nodeosd /opt/eosio/bin/ --data-dir /opt/eosio/bin/data-dir -e --access-control-allow-origin=* --contracts-console --http-validate-host=false --replay-blockchain --hard-replay-blockchain

docker-compose run --name keosd keosd

Now that we have everything set up, it’s time to move on to the next stage of actually writing and deploying smart contracts in EOS ecosystem. Stay tuned for EOS9CAT’s next article.
